Other Products

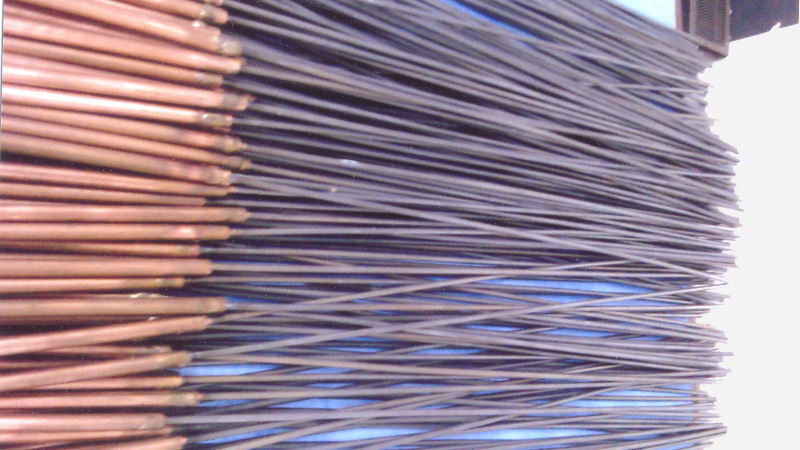

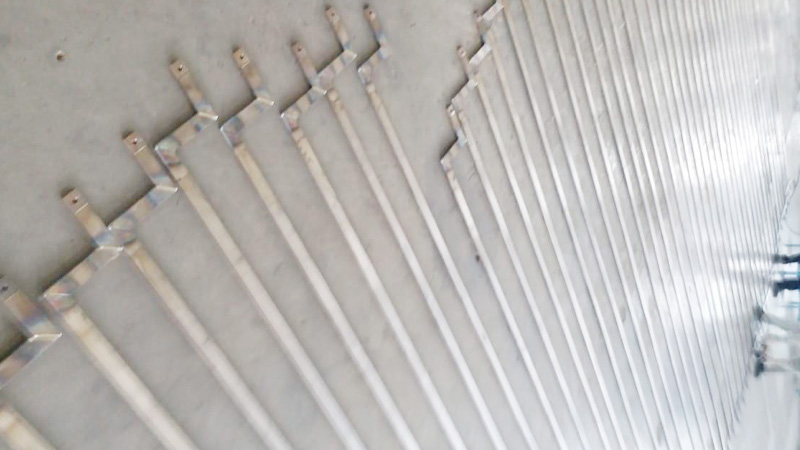

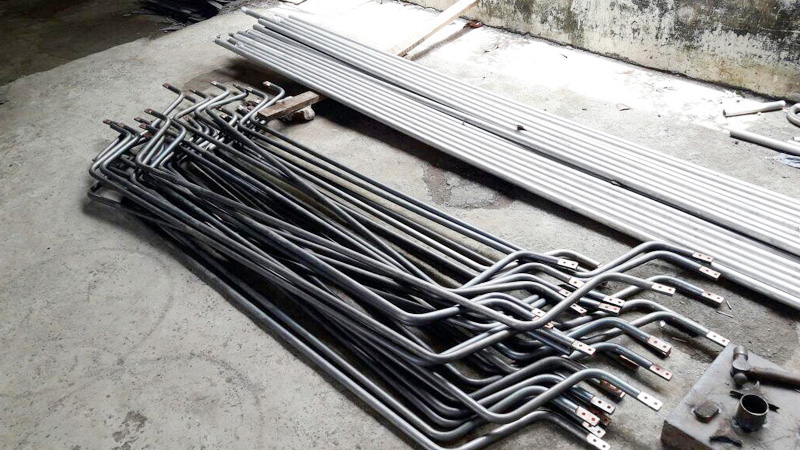

Claded Bus bars

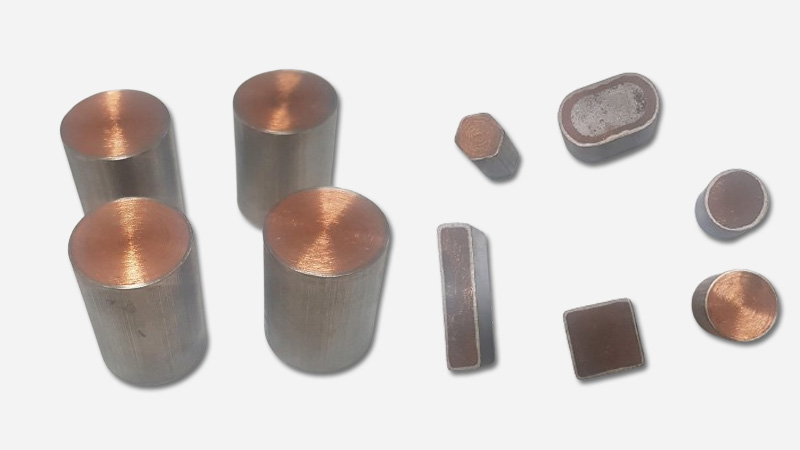

Anomet Product's offers a line of titanium clad copper rod and bar products using our unique metallurgically bonding process. Anomet Titanium Clad Copper bus bar utilizes CP Titanium metallurgically bonded to an OFHC (Oxygen-Free High Conductivity) Copper Core.

Anomet Ti Clad Copper has excellent conductivity and is fully ductile for shaping and forming. Ti Clad Copper also has great weldability for connecting, capping and joining. Anomet's custom processing methods allow for a wider variety of Ti to copper ratios. Specifications for typical configurations are illustrated in the table below. Anomet Ti Clad Copper can be cut to length and packaged to customer requirements. Anomet also offers complete metallurgical services for testing and quality control. Bus Bars are also available in with Aluminum (Al Clad Cu), Zirconium (Zr Clad Cu), and Stainless (SS Clad Cu) cladding.

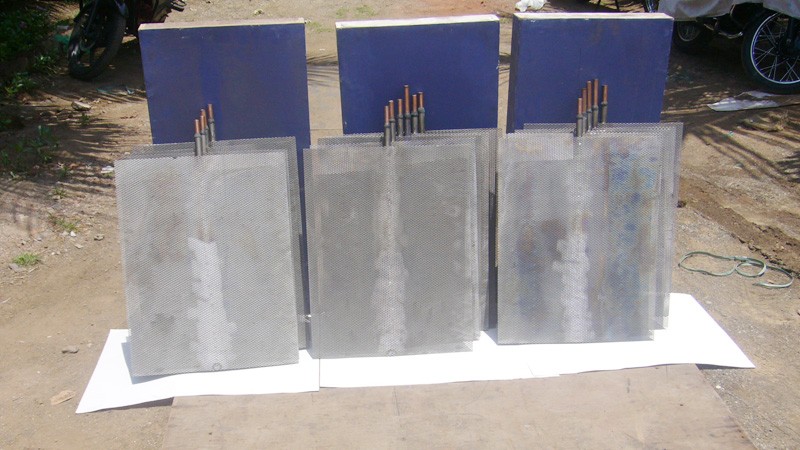

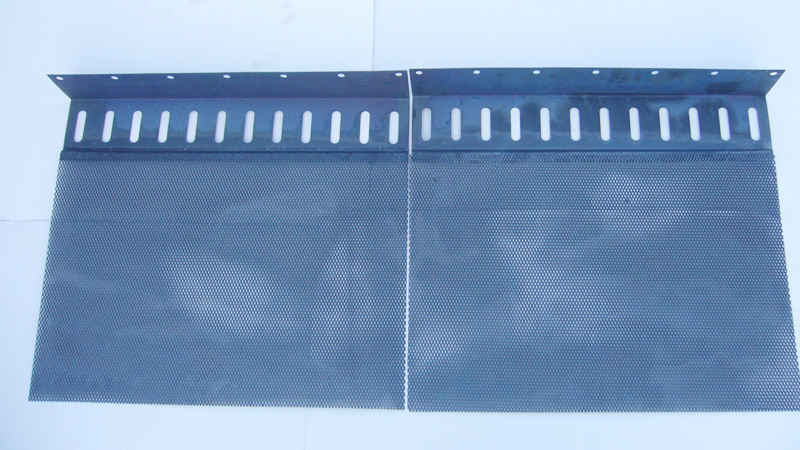

Activated Ti., Zr., Nb. Metal Anode / MMO Coated Anode

Titanium Anodes & Titanium Electrodes
A-1 Electrocatalytically Activated Dimensionally Stable Titanium Electrode/Anode Technology

Titanium DSA electrodes are the state of art as anode for a wide range of electrochemical applications. The excellent stability of titanium against surface and pitting corrosion make it dimensionally stable permitted dramatic innovations in equipment design, operation conditions and energy consumptions of many electrolysis processes. The application of coating containing mixed metal oxides (MMO) such as RuO2,IrO2,TiO2 and Ta2O5 allows to reduce remarkably the over potential for anodic chlorine and anodic oxygen evolution. Additionally the MMO coated anode's excellent stability consequently do not contaminate the electrolysis system, improving the products purity and maintenance costs. As a specialist in PGM catalysts technology, A1 extended its technical know-how to the R&D of electro catalytic products and established a complete "in-house"

facility for custom titanium electrode design, testing and evaluation of the optimum performance requirements.
A-1 offers different types :

Anode Types

  • Ruthenium Coated Ti Anode
  • Ruthenium / Iridium Coated Ti Anode
  • Iridium / Tantalum Coated Ti Anode
  • Precious Metal Coated Ti Anode

Size and shape are determined by

  • The electrochemical cell or installation wherein the anodes are used.
  • The process conditions such as electrolyte compostion, temperature, current density, design life, etc
  • Mechanical load of the anode.
  • Capacity of electrical conductivity of the base material.

All substrates and electrolysis cells are produced according to customer specifications. We disassemble, inspect, repair and assemble these cells and provide the cells with new or recoated electrodes if necessary. We also manufacture complete replacement cells. When these specifications are not yet completely determined, our engineers are pleased to use their knowledge and experience to finalize the design together with the customer.

In addition, one of our unique advantage is that we also produce all coating precursor materials in house which let us pass on extra value to our customers. The combination of industry standard manufacturing of the titanium substrate and in house MMO precursor materials fabrication, enable KaiDa to provide the industry's lowest cost of ownership.

KaiDa's titanium substrate processing facility is capable of producing electrode with different size, form, shape and other customized configurations. With our intelligent coating formulation from standard designs to custom designs, our titanium DSA electrodes have been successfully used in a wide range of electrochemical applications.



Advantages :

  • When activated coating is passivated, it can be coated again and use repeatedly.
  • Economical energy.
  • Low weight.
  • High dimensional stability and load resistance.
  • Highly suitable as auxiliary anodes of complex geometrical shapes.

Manufacturing Range :

  • Box type
  • Rod type
  • Wire type
  • Ring Type
  • Plate Type

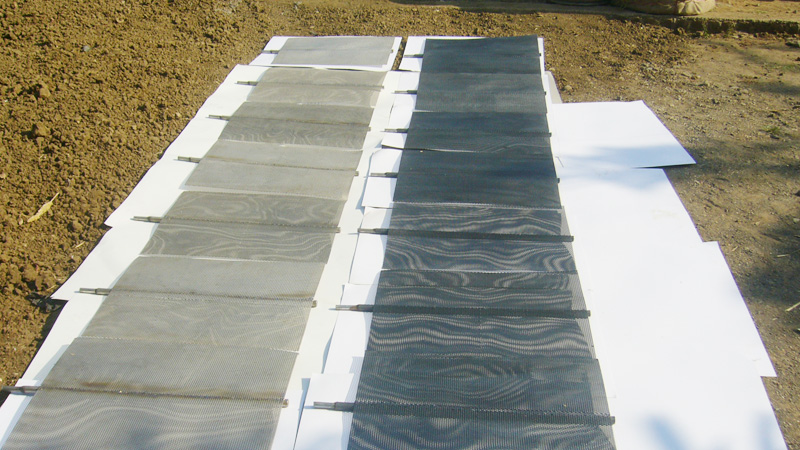

  • Mesh Type
  • Louver Type
  • Ribbon Type
  • Tubular Type
  • Runner Type
  • Any other Geometry

Applications :

  • Copper foil production
  • Chlor Alkali Cells
  • Chlorine Dioxide Cell
  • Caustic Potash
  • Water Electrolysis
  • Sewage Treatment
  • Cathodic Protection
  • Electrolysis plating
  • Swimming Pool Water Treatment
  • Industrial Waste Water Treatment
  • Electrowinning Metal Extraction/Recovery
  • The Manufacture of Inorganics
  • The Manufacture of Organics
  • The Manufacture of Organics
  • The Recycle of Chemicals and Materials
  • Separation and Purification
  • Pulp and Paper
  • Atmosphere Control and Improvement
  • Destruction of Toxic Waste
  • Soil and Groundwater Remediation

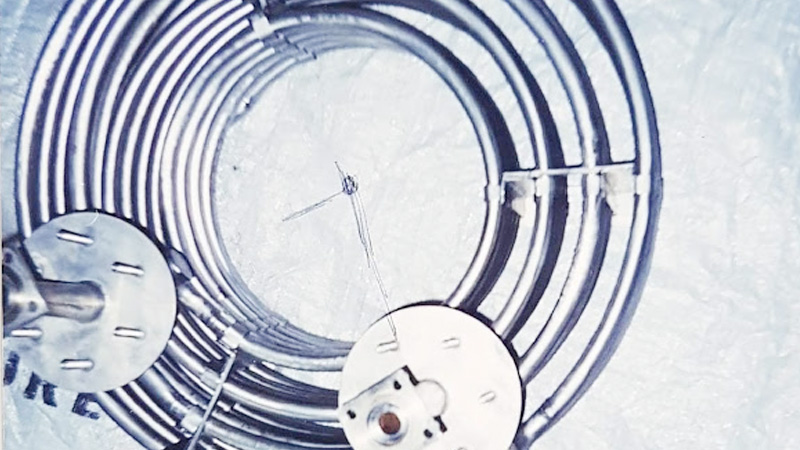

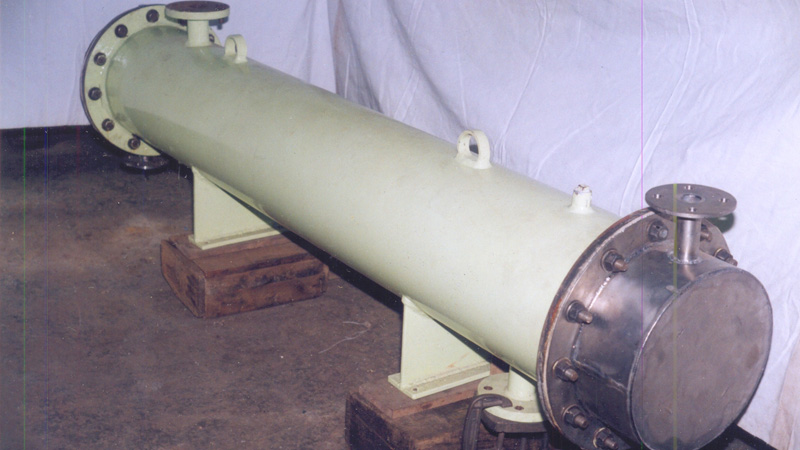

Titanium / Zirconium Shell & Tube Heat Exchanger

TiFab manufactures shell and tube heat exchangers utilizing titanium, zirconium and nickel alloys on either the tubeside, the shellside, or both.

TiFab performs all thermal and mechanical design in house with multiple design software licenses (including HTRI membership). Because we design and fabricate with anticorrosion materials such as titanium and zirconium every day, our strength is presenting our customers with multiple effective cost and delivery solutions that are not apparent when dealing with other more common materials.

TiFab also stocks titanium and zirconium tubing in 3/4"; and 1" diameter, for quick turnaround solutions.

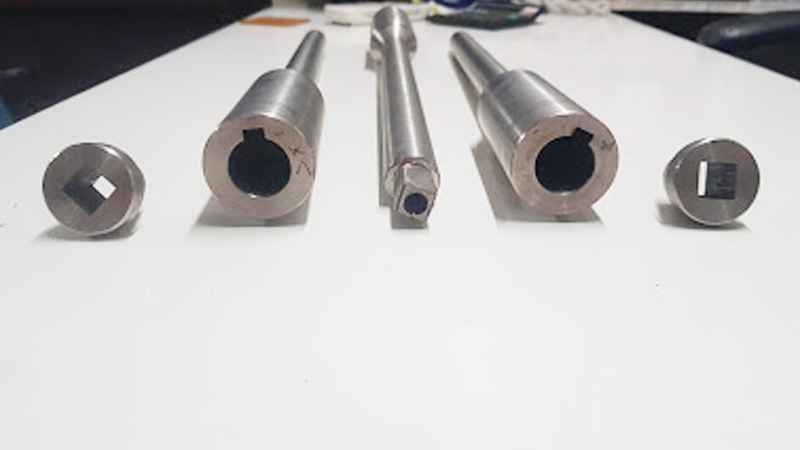

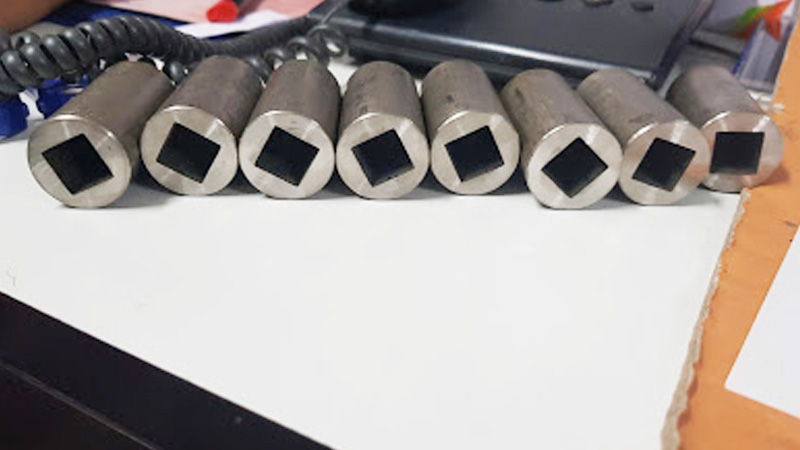

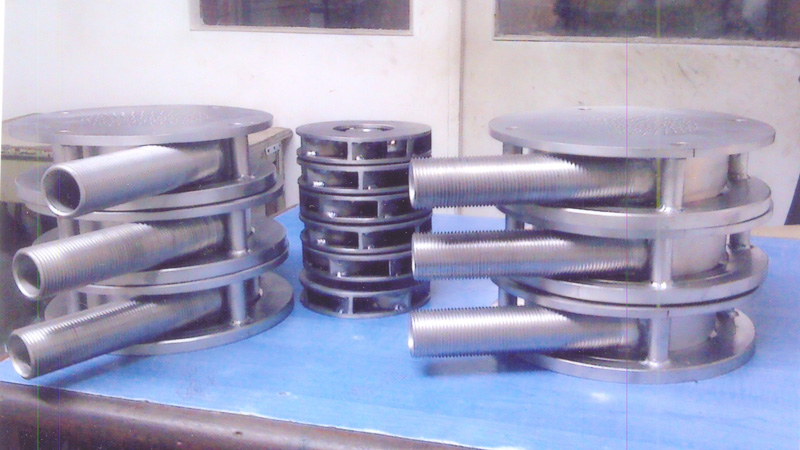

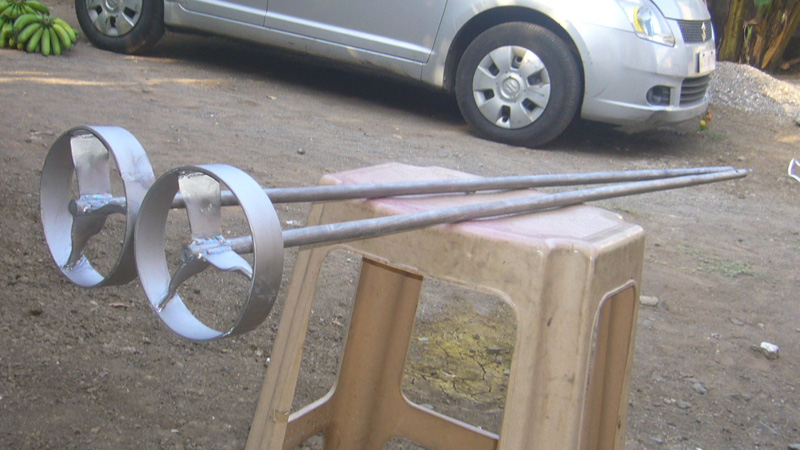

Titanium Pumps / Blowers / Valve

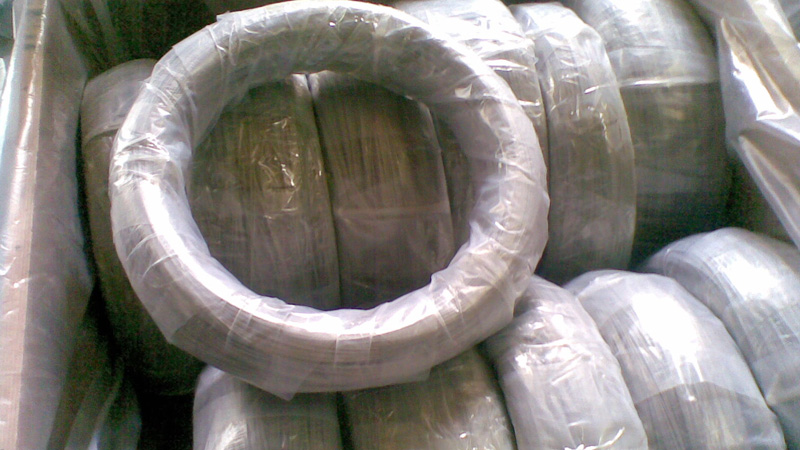

Titanium Woven Wire Mesh / Expanded Mesh





A-1 Titanium Equipments, is an ISO 9001:2015, certified company, boasting 45 years of expertise as a full-service designer and manufacturer of Exotic Metal Equipments like Ti,Ta,Zr,Nb,Ni,SS & SS Alloys.

A-1 Titanium Basket & Equipments
A-1 Titanium Equipments
A-1 Process & Equipments
